2019 Hurricane Ditcher Ditch Angel™ Base

2019 Hurricane Ditcher Ditch Angel™

The Ditch Angel™ comes with a 26″ 5 paddle impeller. Paddles are designed to be hard surfaced or carbited as they wear.

The design of the Ditch Angel allows the operator to ditch in many positions. With the use of hydraulic cylinders, operated from the cab of the tractor, it is easy to adjust the depth and distance the ditcher is cutting to get the desired ditch. The impeller can reach 11′ from the center of the machine out to the side and a maximum of 5′ deep.

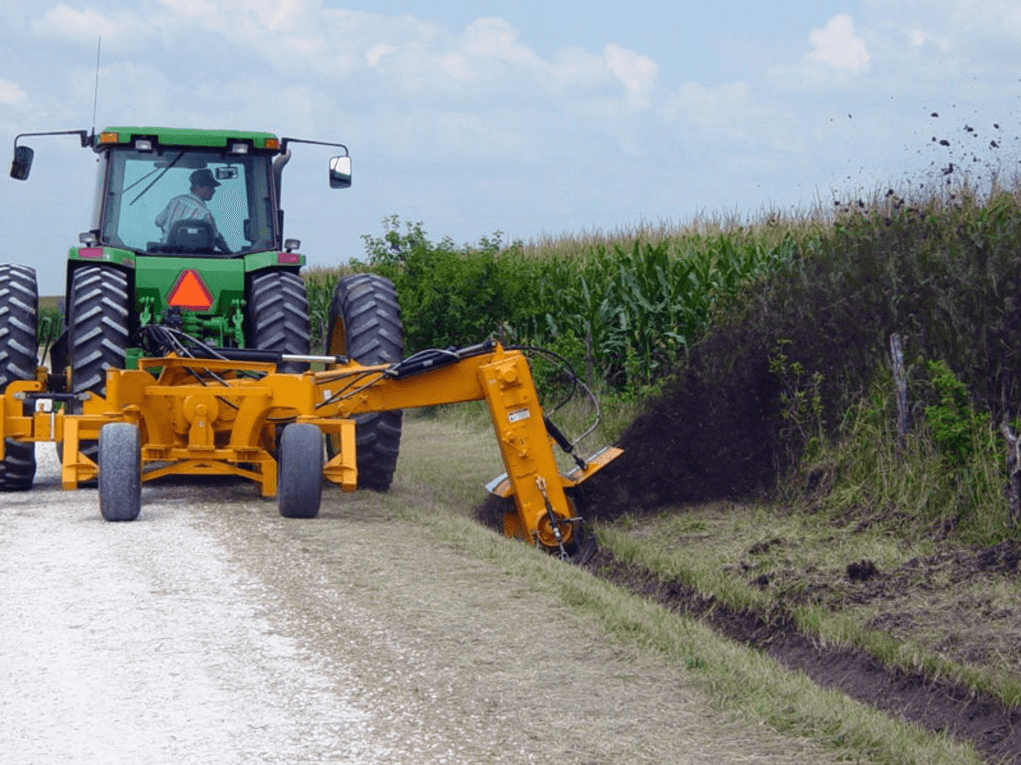

The Ditch Angel™ is a side arm ditcher. It comes equipped with a 26″ ditching wheel. The ditcher operates in dry or wet conditions. It blows soil 30′-50′ out the right side of the machine. A hydraulically controlled deflector is standard on all side-arm ditchers to keep material diverted away from machine and operator.

The top link of the Ditch Angel™ (not pictured) is designed to telescope. This allows the machine to float while being operated on rough terrain instead of being hooked rigid.

The counter balance weight is adjustable on the Ditch AngelTM. It can be positioned backwards (manually) to gain more clearance for transporting or storage. The counter balance can also be equipped with a hydraulic cylinder.
