There are two seating options available for the R Series, all of which are factory installed

Deluxe comfort seat with armrests and isolation
Fully adjustable suspension seat with armrests

ComfortGlide fore/aft suspension

Each seat has the ComfortGlide fore/aft suspension system that gives superior ride comfort over uneven areas:

Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort.
Control lever provides the ability to easily lock out fore/aft suspension movement if desired.
One lever has three functions:
- Slide seat forward and back 3 in. (10.2 cm) to allow the operator the ability to choose the leg room needed
- Activate ComfortGlide fore/aft seat suspension
- Lock out ComfortGlide fore/aft seat suspension

Deluxe comfort seat with armrests and isolation

The deluxe comfort seat with armrests and isolation is available on the E, M, and R Series:

Rubber springs are provided to isolate the seat base and to increase ride comfort.
A convenient seat latch makes it easy to lift the seat.
Isolation mounting is a good feature to reduce vibration for operators who do not require the fully adjustable suspension seat option.
Factory installed on Z900s ordered with the deluxe comfort seat with armrests and isolation option.

Fully adjustable suspension seat with armrests

A fully adjustable suspension seat with armrests option is available on the M and R Series:

Adjustable back angle is provided for individual operator comfort.
Adjustable lumbar support helps to suit the needs of the operator.
A suspension seat control dial gives easy adjustment for operator weight and ride comfort.
A convenient seat latch provides ease of lifting the seat.
On Z900s ordered with the fully adjustable suspension seat with armrests option, it is factory installed.

Designed for operator comfort

Two-lever hydrostatic control provides the following:

The operator can select the ground speed and direction control simply by moving levers forward or reverse.
Positive neutral lock position for levers provides added safety.
Brake & Go operator-presence system returns levers to the neutral position when the brake pedal is actively engaged.
Starting the machines is as easy as starting a car. It no longer matters if the control levers are extended out or pulled in, as long as the parking brake is engaged. Just turn the key and go.
Wide-bend, large-diameter steering levers swing out easily for entry and exit from the operator platform.

Foot pegs

Foot pegs help in providing the operator with a comfortable foot placement:

Location and angle of foot pegs can be adjusted for individual operator comfort.

Foot platform isolators

Foot platform isolators provide the operator with added comfort:

Vibration to the legs and feet is reduced.

Brake & Go starting system

The Brake & Go starting system is a John Deere exclusive. This feature makes the starting process on all ZTrak™ mowers easier, while also making it possible to remove two interlock switches from the machine.

The Brake & Go starting procedure helps a novice operator look and feel like a professional. To start the machine, the parking brake must be engaged. It does not matter whether the power take-off (PTO) switch is on or off, nor does it matter if the control levers are pulled in or in the out position.

As long as the parking brake is engaged, the machine will start. When the parking brake is applied, the control levers cannot be moved to the forward or reverse positions.

Adjustable levers

The motion control levers have two height positions and can also be adjusted forward or rearward within the slotted holes. The levers should be adjusted so the operator can achieve a full range of control operation comfortably.

Tracking adjustment

The easy-to-turn (from-the-seat) tracking adjustment allows operators to keep their mowers straight and able to produce professional striping results.

Onboard storage and cup holder

Several storage areas are provided on the ZTrak machines. A convenient cup holder is also available.

Right-hand control panel

The controls are grouped together on the right console, providing one central location for key switch, throttle, PTO engagement, height-of-cut, diagnostics, and hour meter:

Rocker-type PTO switch
Height-of-cut knob with transport lock
Key switch
Hour meter
Throttle
Separate choke control
- Easy choke operation yields less fouling of plugs
- No choke required for the electronic fuel injection (EFI) models

Easy-to-operate height-of-cut adjustment enables on-the-go changes

An easy-to-use cutting-height lift system allows the operator to adjust the mower deck height with no tools and minimal effort. The easy-to-grip knob allows operators to dial in the desired height of cut (HOC).

Cutting height can be adjusted from approximately 1 in. to 5.5 in. (2.5 cm to 14 cm). Each increment on the knob adjusts the HOC approximately 0.25 in. (0.64 cm). The deck can also be raised and locked in a transport position to provide maximum ground clearance when moving the machine from one area to another.

The transport lock function allows the deck to be returned to the previous HOC after being in the transport position:

Use the foot-lift pedal to lift the deck and engage the transport lock.
Rotate the knob to adjust from 1 in. to 5.5 in. (2.5 cm to 14 cm) in 0.25-in. (0.64 cm) increments.

This design increases productivity by allowing operators to change the cutting height without having to leave the seat.

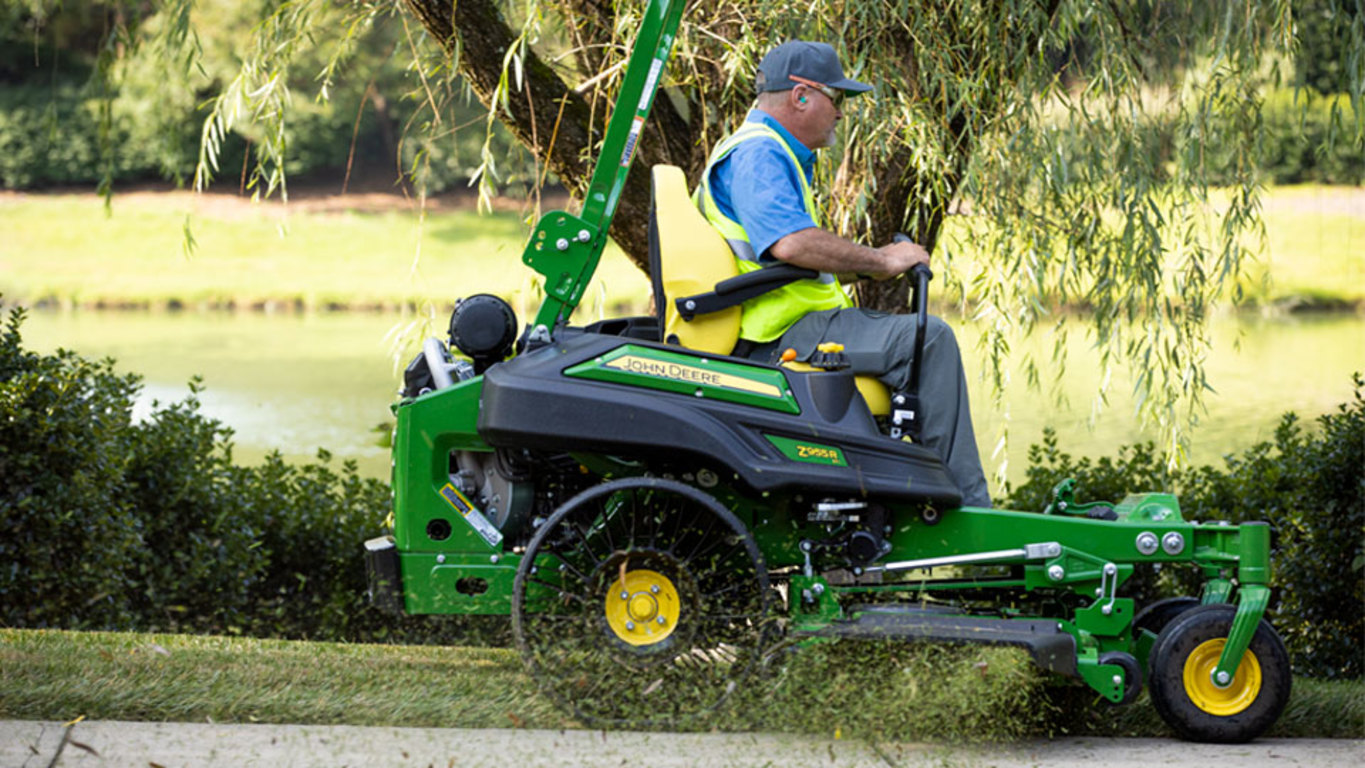

Z955R EFI ZTrak™ Zero-Turn Mower
